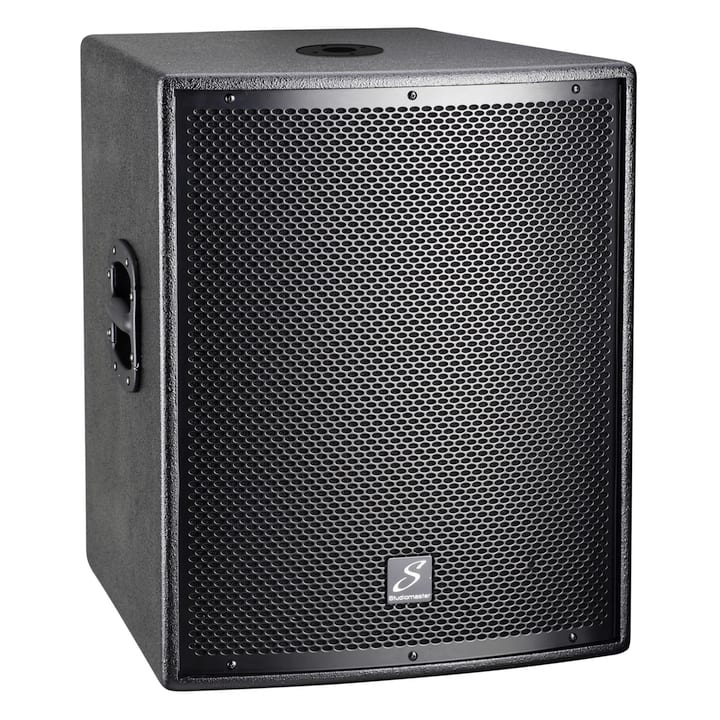

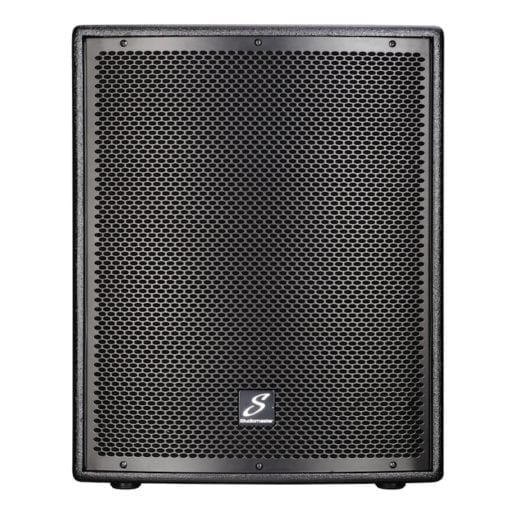

Studio Master DRIVE 15SA Active Subwoofer


Call 02072494814 to Pre-Order



The Drive series is our largest range of active and passive speaker cabinets, from 10″ to 15″ and a matched 15″ sub. Offering up to 1200watts of power for certain models, the specification and quality of these injection moulded cabinets is putting this series at the front of the queue for affordable, robust and great sounding speakers.

There are 13 models in total to choose from, 3 x 10″, 4 x 12″, 4 x 15″ and 2 x 15″ subs. Active and passive , with or without Bluetooth and MP3 media stations and finally a DSP mounted choice. The possibilities are endless.

The active models feature 3 band EQ, mic/line input connections on XLR and Jack, gain and level controls and a link facility to connect through to multiple cabinets from one signal source. The new Class D amplifiers in these models has been designed to deliver high power and a clean sound at all power levels.

All models come in a great looking high quality injection moulded cabinet, with the additional benefits of 35mm speaker pole connection, multiple M10 flying points, and large easy to grip carry handles.


  • 15″ sub bass cabinet
  • 15mm plywood construction
  • 35mm top hat speaker pole connection
  • 450 watt Class D amplification
  • Balanced XLR inputs
  • Full range and 100Hz filtered outputs
  • Master volume and limiter


Format: 15″ active subwoofer cabinet
Frequency response (-10dB): 30Hz – 150Hz
Input sensitivity (Line): 0dBu
Max SPL: 120dB
Amp Power: 1800W(PEAK), 900W(PGM), 450W(RMS)
LF: 15″ woofer / 75mm voice coil / 4ohm

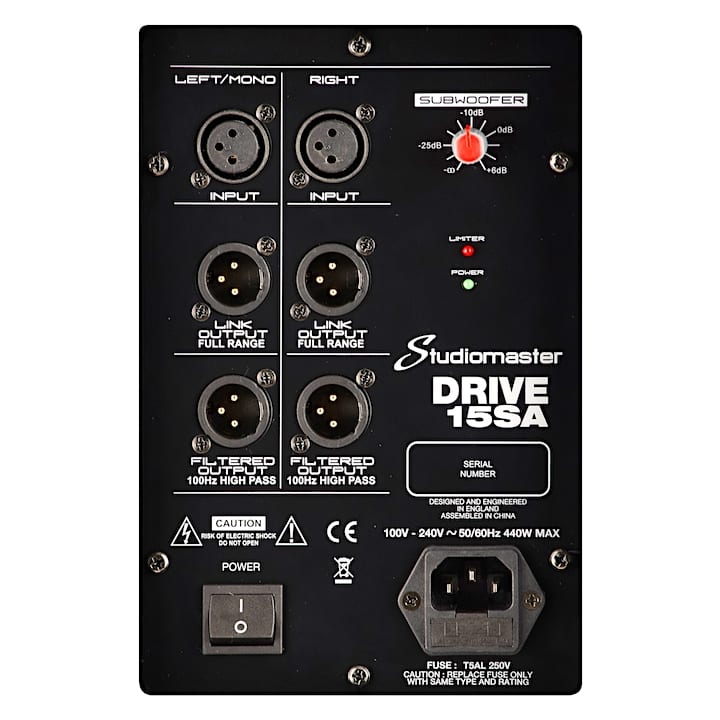

Input Connection: 2x XLR input, 2x link output, 2x filtered output
Power voltage: 115V / 230V
Dimension W*H*D: 475 x 590 x 550 (mm)
Weight: 25KG

Additional information

Weight 25 kg
Dimensions 550 × 475 × 590 mm
