Description

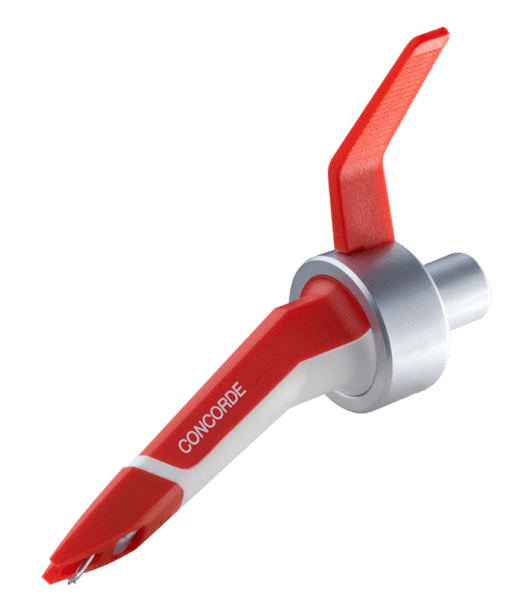

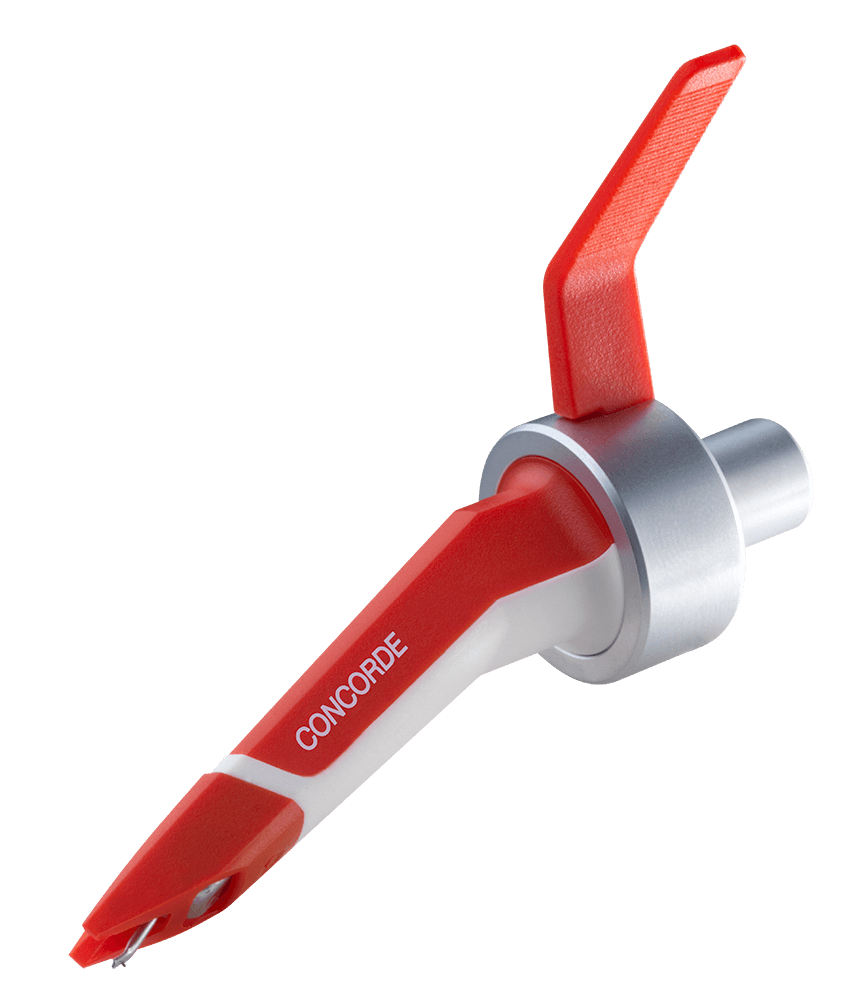

Concorde MKII DIGITAL is designed to extend the life of timecode vinyl and minimize errors in decoding
• At the same time the new Concorde MKII DIGITAL provides optimal output voltage and sound quality for use with conventional vinyl.
• This optimized 10 mV output voltage maximizes the signal-to-noise ratio of the audio being fed to the software, which results in better interpretation of the timecode signal.
• Furthermore, a decrease in the reproduction of frequencies where vinyl wear & crackle occur helps to minimize errors in the interpretation of the timecode signal and helps timecoded vinyl records last longer.
Concorde MKII DIGITAL technical data
- Stylus Type: Spherical
- Tracking Force: 4.0 g
- Output Voltage: 10 mV
- Frequency Range: 20–18.000 Hz

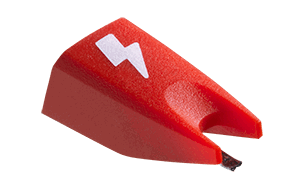

The new stylus features
Replacement stylus offers a tactile feedback when seating, indicating a snug and secure fit, while a cut-out area in the front allows for far more accurate needle drops.
• Larger, wider and more robust stylus body
• Easier to grip and handle
• Better fix by metal spring
• Tactile feedback of correct mount
• Large stylus viewing cut‐out
Output voltage at 1000Hz, 5cm/sec. – 10 mV
Channel balance at 1kHz – 1 dB
Channel separation at 1kHz – 22 dB
Channel separation at 15 kHz – 15 dB
Frequency range at -3dB – 20-18.000 Hz
Tracking ability at 315 Hz at recommmended tracking force – 100 μm
Compliance, dynamic lateral – 14 μm/m N
Stylus type – Spherical R 18 μm
Tracking force range – 3 – 5 g
Tracking force recommended – 4 g
Cartridge weight – 18,5 g
Replacement stylus unit – DIGITAL
Spares and Merchandise
Concorde DIGITAL is available in following configurations:

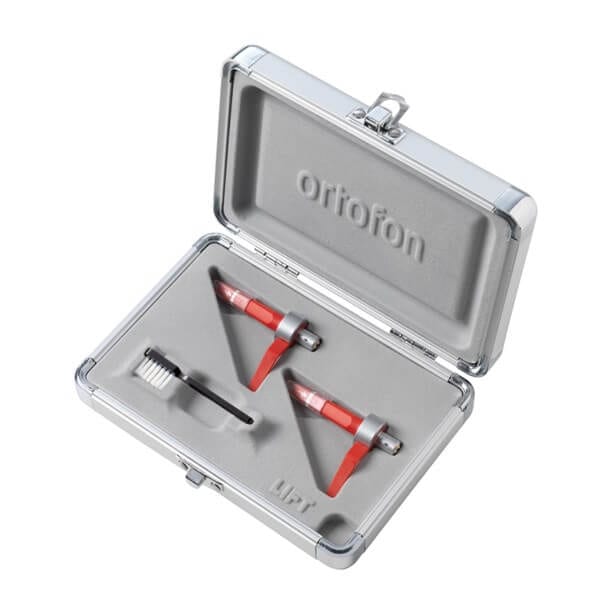

• Concorde TWIN (two Concorde MkII MIX cartridges with preinstalled styli), supplied in Flight case
• Concorde Single (one Concorde MkII MIX cartridge with preinstalled stylus)
Spares:
• Stylus DIGITAL
• Styli protection guards for Concorde MkII, pair

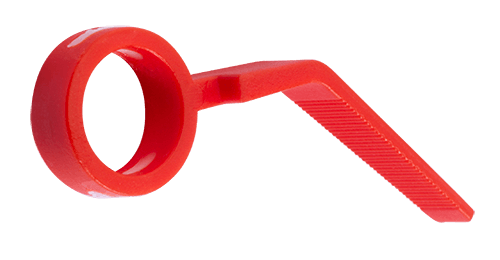

• Finger lift for Concorde MkII
Merchandise:
• T-shirt DIGITAL
• Slipmat DIGITAL
