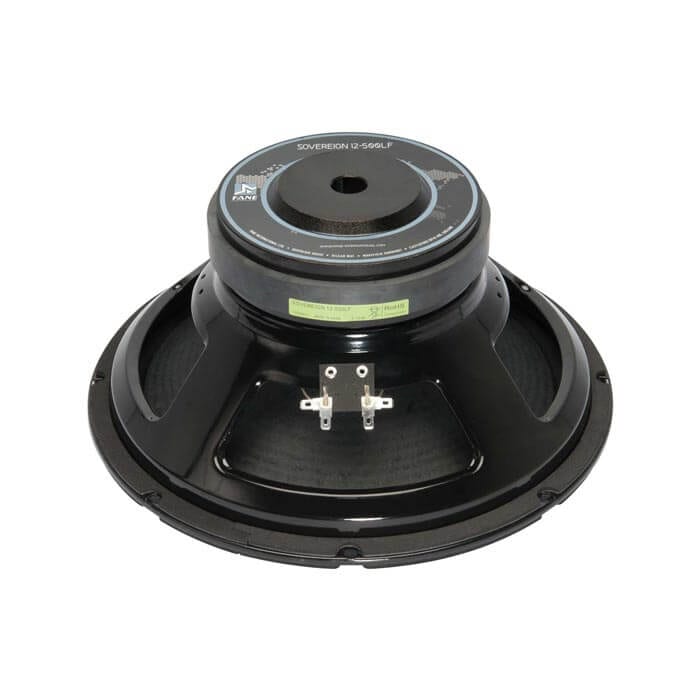

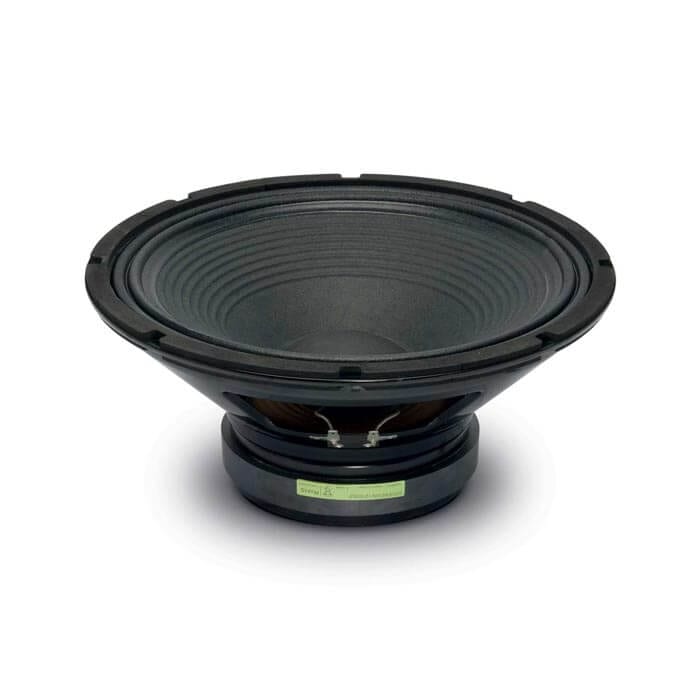

Fane SOVEREIGN 12-500LF 12 Inch Bass Driver

£84.99

Out of Stock - Call 02072494814 for Availability

SKU: SOVEREIGN 12-500LF Categories: , , Tags: , , ,

Description

  • 1000 W Program Power.
  • 95 dB Sensitivity (1W/1m).
  • High-power bass driver ideally suited for use in two-way ported enclosures.
  • Optimised cone pulp offers increased strength, durability and performance.
  • Also works well in monitor or bass guitar applications.
  • 2.5-inch Copper voice coil.
    Electro Acoustic Specifications
    Nominal Chassis Diameter 12″ / 304.8 mm
    Impedance 8 Ω
    Power Handling 500 W (A.E.S.)
    Peak Power (6dB Crest Factor) 2000 W (A.E.S.)
    Usable Frequency Range (-6dB) 38 Hz – 5 kHz
    Sensitivity (1W – 1m) 95 dB
    Moving Mass (inc. Air Load) 75 grams
    Minimum Impedance (Zmin) 7.4 Ω
    Effective Piston Diameter 10.67″ / 271.01 mm
    Magnet Weight 56 oz
    Magnetic Gap Depth 0.39″ / 10 mm
    Flux Density 0.97 Tesla
    Coil Winding Height 0.74″ / 19 mm
    Voice Coil Diameter 2.5″ / 63.5 mm
    Speaker Type Bass Driver
    Thiele Small Parameters (TSPs)
    FS 50 Hz
    Re 5.9 Ω
    QMS 7.5
    QES 0.53
    QTS 0.51
    Vas 66 Litres
    Vd 0.298 Litres
    CMS 0.14 mm/N
    BL 16.37 T/m
    MMS 75 grams
    Xmax 5.5 mm
    Sd 576.1 cm2
    Efficiency 1.50%
    Le 2.36 mH
    EBP 94.34 Hz
    Materials of Construction
    Coil Former Material Glass Fibre
    Voice Coil Material Copper
    Magnet Material Ferrite
    Chassis Material Pressed Steel
    Cone Material Straight Polycellulose Ribbed Cone
    Surround / Edge Termination Polyvinyl Damped Multi Roll. Poly Cotton
    Dust Dome Material Paper
    Connectors Solder Tag
    Polarity Positive voltage at red terminal causes forward motion of cone
    Mounting / Shipping Information
    Overall Diameter 12″ / 304.8 mm
    Width Across Flats N/A
    Flange Height 0.27″ / 6.9 mm
    Baffle Hole Diameter F/M 11.25″ / 285.75 mm
    Baffle Hole Diameter R/M 11.25″ / 285.75 mm
    Gasket Supplied Front & Rear
    Outer Fixing Holes 8x ø 7.0 mm on 11.75″ / 298 mm PCD
    Inner Fixing Holes Not Applicable
    Depth 5.69″ / 144.52 mm
    Weight 11.02 lb / 5.0 Kg
    Recommended Enclosure Volume 1.05 – 2.64 cu ft / 30 – 75 Litres
    Shipping Weight 12.89 lb / 5.85 Kg
    Packing Carton Dimensions (W) 330 (D) 330 (H) 170 mm
