Description
BWP18 – 18″ 1500w RMS Subwoofer Bass Speaker Cast Alloy LF Driver With Faston Terminals
Powerful and proven in many different cabinet designs and classed by professional speaker cabinet designers. We load this driver in all our UK-built sub-woofers for power and reliability.

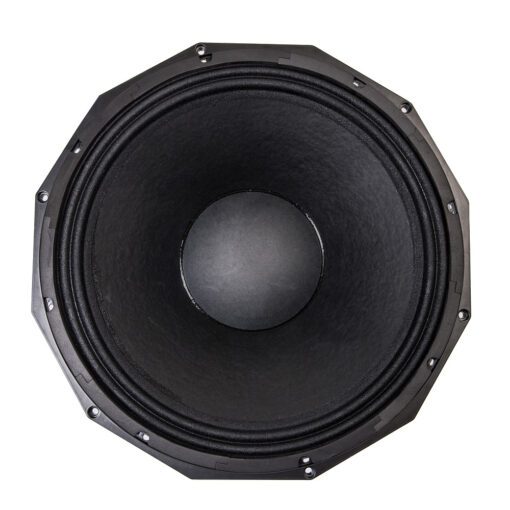

We use high-quality cast chassis. Made from professional-grade materials the Kapton coils, ferrite magnets, BRITISH paper cones with rolled cloth edge and push terminals.
Key Features
- 1500w AES – 3000w Program Power
- 5″ Voice Coil

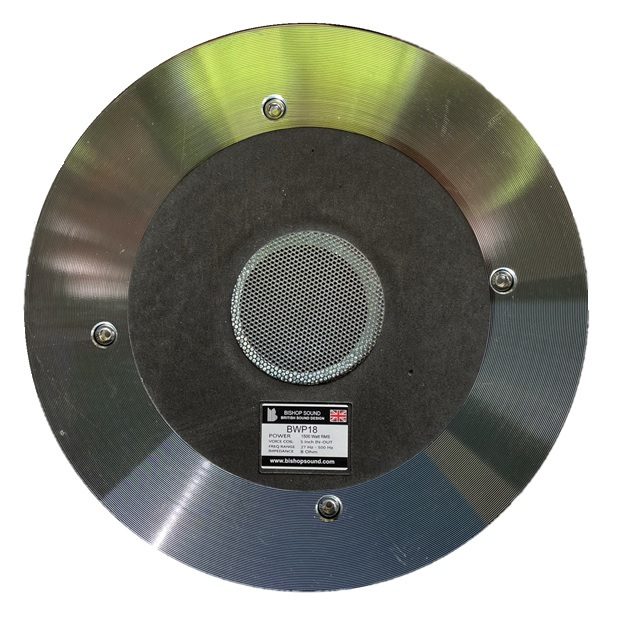

- 200 Oz Magnet

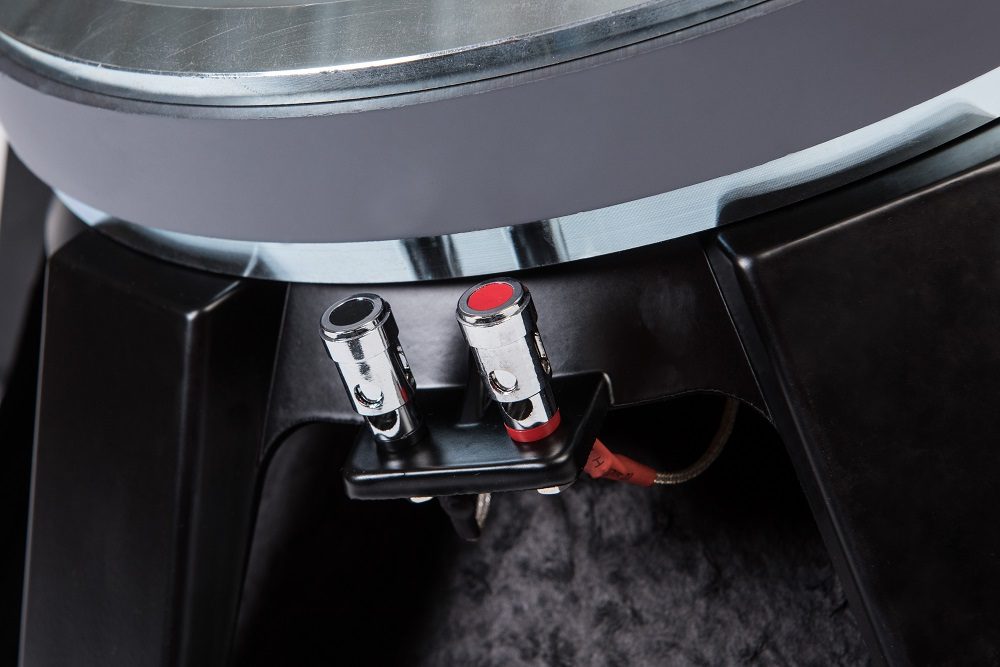

- Faston Stainless Steel Press Terminals
- 8 Ohm and 4 ohm Impedance versions available
| Product Weight | 22kg |
|---|---|
| Product Depth | 52cm |
| Product Height | 52cm |
| Product Width | 26cm |
| RMS Power: | 1500 |
| Nominal Diameter: | 470mm / 18″ |
| Re: | 5.4 ½ |
| Qms: | 9.743 |
| Qts: | 0.38- |
| Vas: | 163.1 litres |
| Mms: | 248 g |
| Sd: | 1244 cm2 |
| BL: | 30.3 T/m |
| Xmax: | 11 mm |
| Bolt Hole: | 7mm |
| Voice Coil Diameter: | 125mm / 5.0″ |
| Mounting Hole Diameter: | 422mm |
| Sensitivity (1w / 1m): | 100 dB |
| Frequency Range: 3 | 35 Hz – 2 kHz |
| Resonance: | 32 Hz |
| Voice Coil Winding Depth: | 32mm |
| Voice Coil Material: | Copper |
| Magnet Material: | Ceramic |
| Fs: | 32 Hz |
