Description

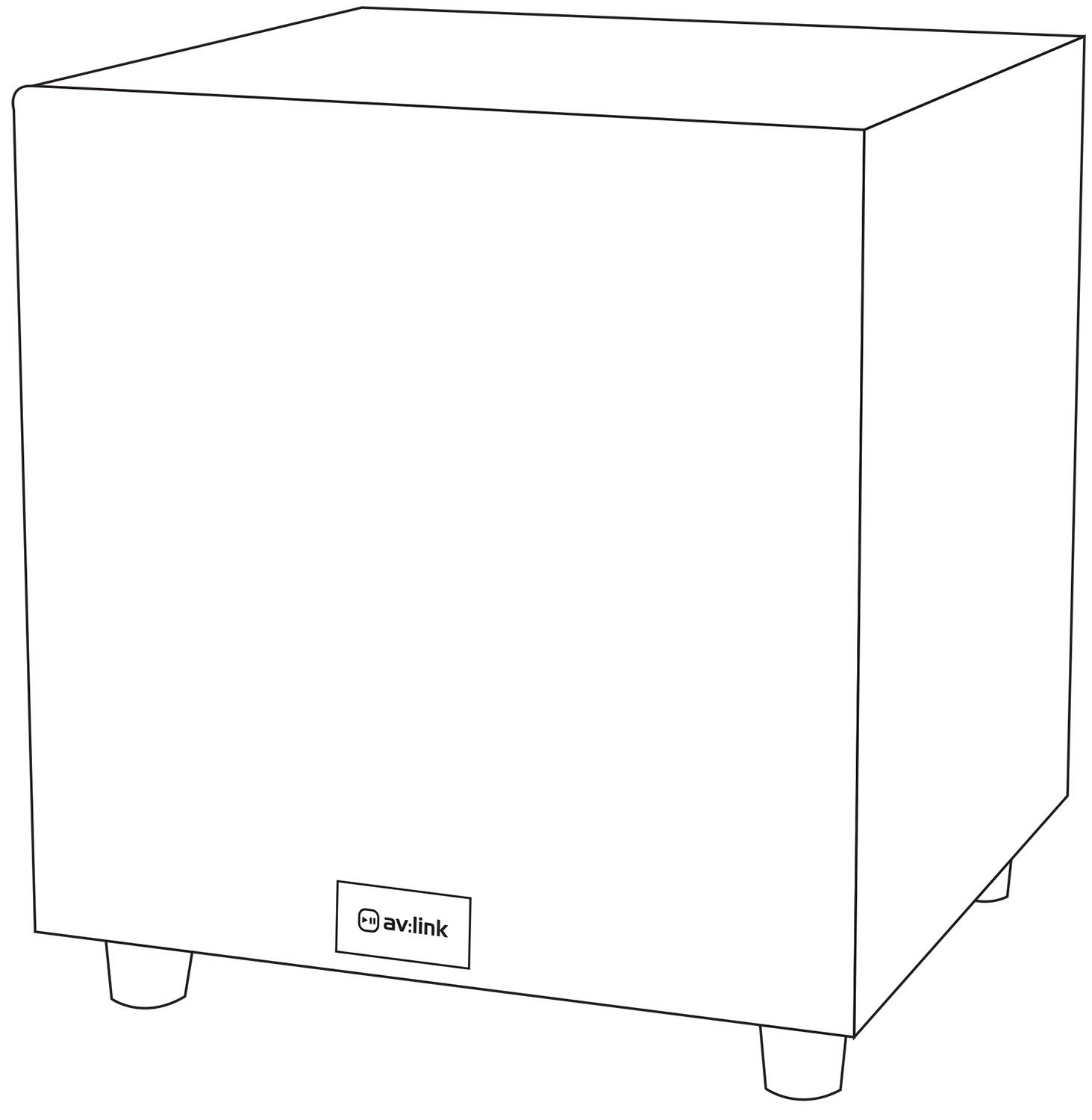

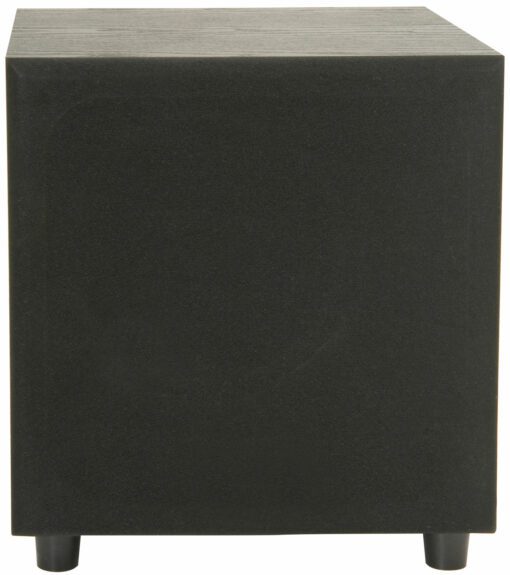

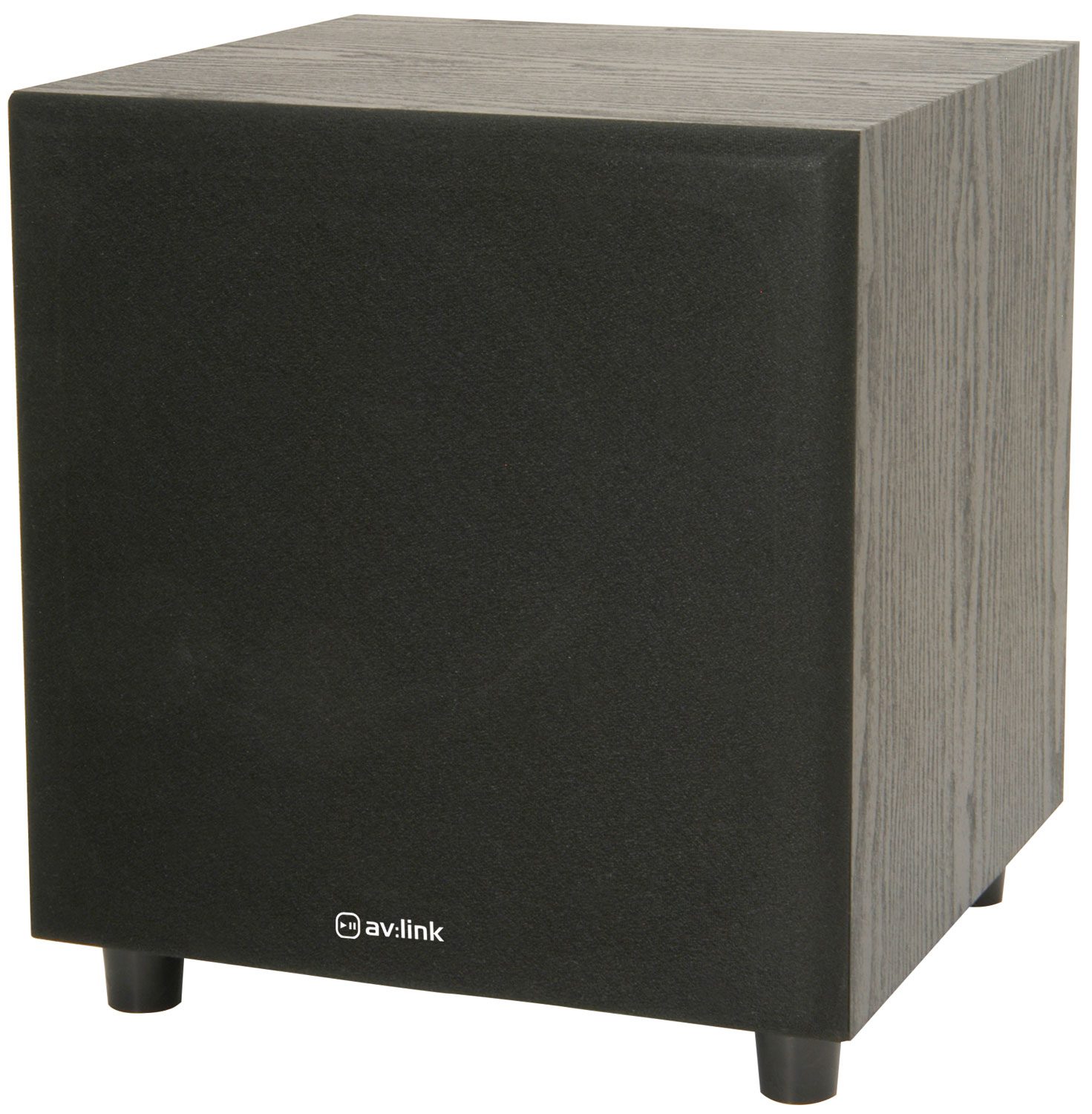

M8S Active Subwoofer Cabinet
Active sub cabinet with 8″ (20cm) reinforced driver and internal amplifier with active filter circuit. Inputs are on twin RCA or from a stereo amplifier on spring terminals (between amp and mid-top speakers). Cutoff frequency and Gain rotary controls can be adjusted as required. “Auto Off” function deactivates the amplifier when no incoming signal is detected to conserve energy.
- Integral amplifier with variable crossover
- Auto off function conserves energy
- Speaker level or line level inputs
- Power supply: 220-250Vac, 50/60Hz (Fig 8)

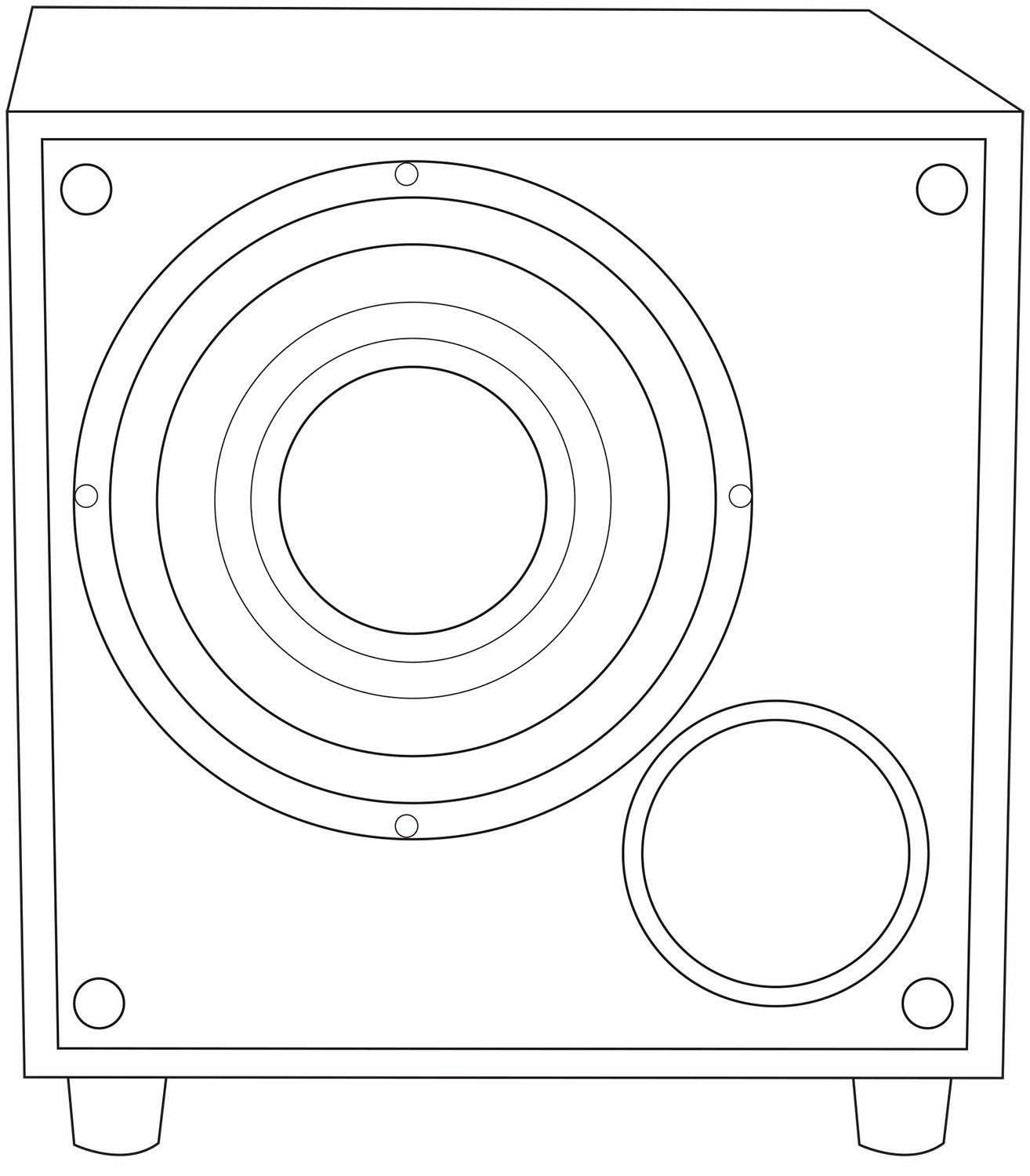

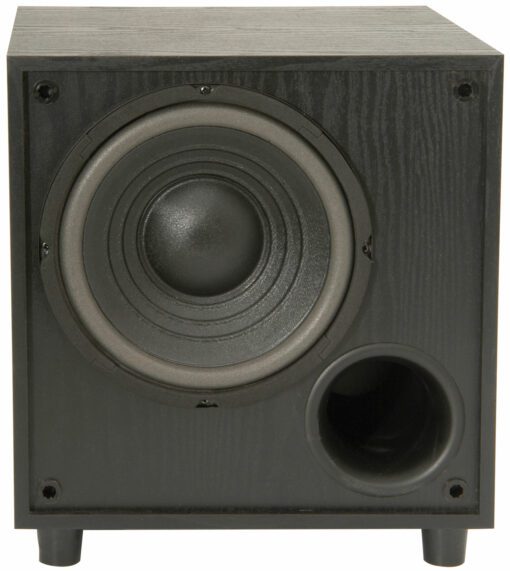

- Driver: 20cm (8″) reinforced cone
- Speaker : impedance: 4 Ohms

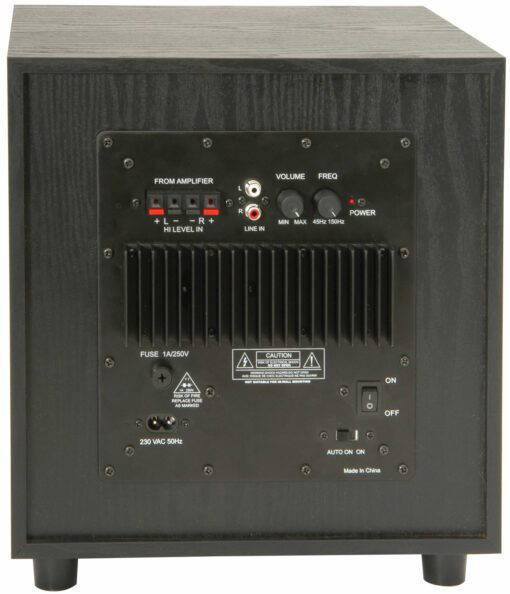

- Connections: Speaker level input terminals, RCA line level in
- Cut-off frequency: 45 – 150Hz
- Rated output power: 100W
- Peak output: 200W
- Frequency response: 50 – 250Hz
- Dimensions: 300 x 330 x 300mm
- Weight: 7.44kg
