Description

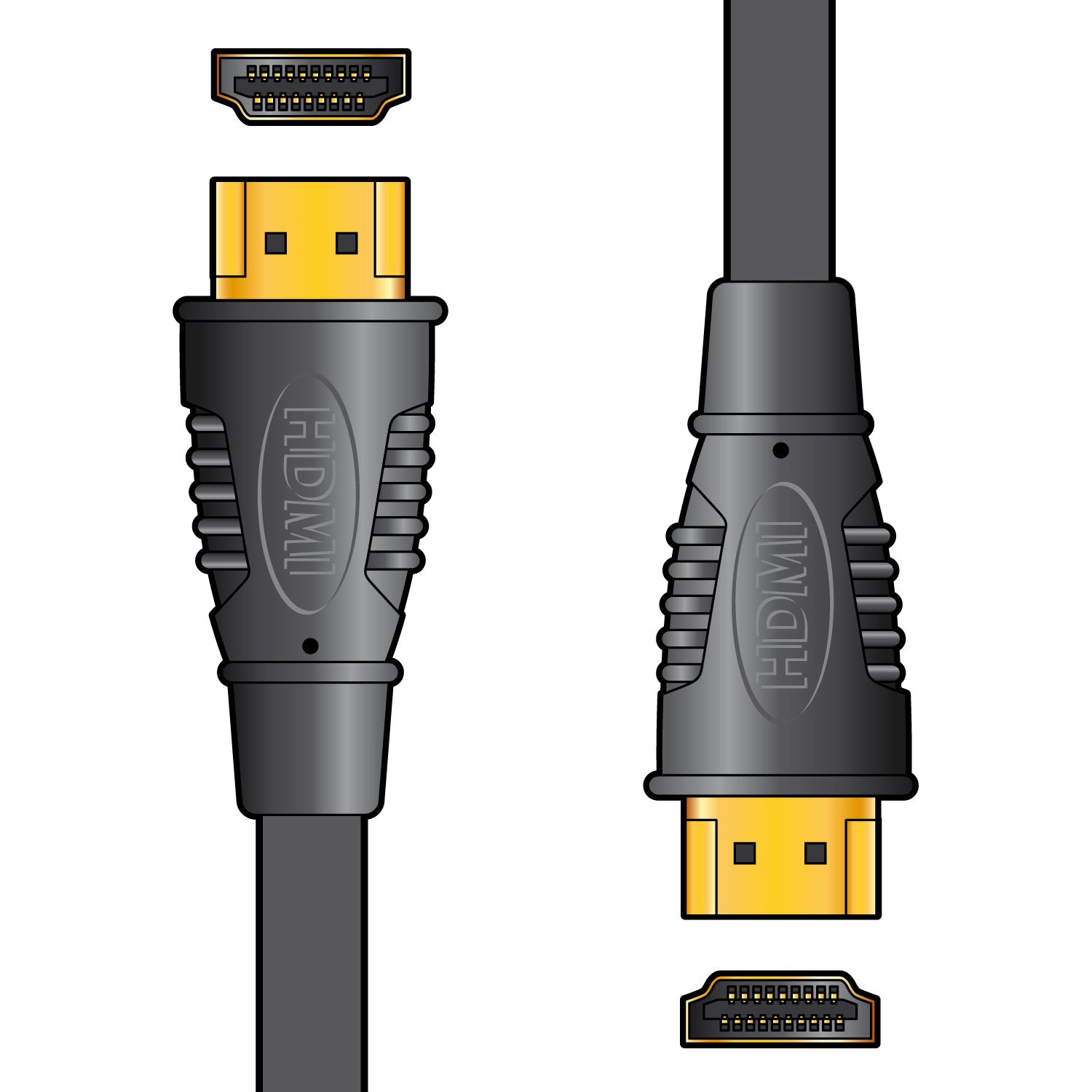

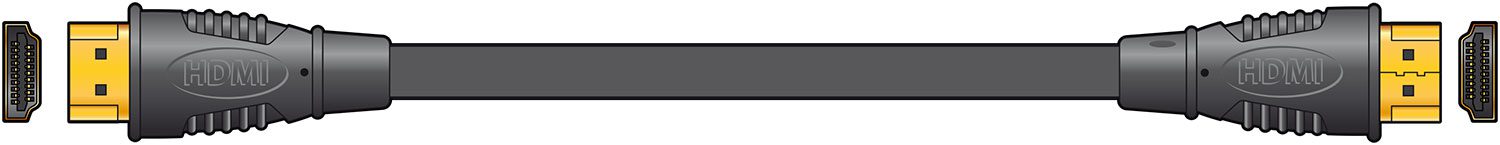

HDMI-HDMI – High Quality 4K Ready HDMI Leads – Plug to Plug
High quality HDMI cable designed for high speed data transmission, ideal for 4K UltraHD video connection.
- Oxygen-free copper conductor
- Gold plated connector
- High speed HDMI ideal for 4K ultra HD video transmission (up to 3840 x 2160p@60Hz)
- HDMI v2.0 4K (supports v1.1, v1.2, v1.3 and v1.4)
- HDCP 2.2 compliant
- Dolby® TrueHD and DTS-HD Lossless sound support
- Ethernet, audio return and 3D compatible
- Supplied in retail friendly sealed bag (apart from 10m, 15m and 20m)
HDMI-HDMI – Specification : Versions
| 112.136UK | 112.138UK | 112.140UK | 112.142UK | 112.144UK | 112.147UK | 112.149UK | |
|---|---|---|---|---|---|---|---|
| Conductor | 0.255mmØ | 0.255mmØ | 0.255mmØ | 0.321mmØ | 0.321mmØ | 0.511mmØ | 0.511mmØ |
| Cable : diameter | 6mmØ | 6mmØ | 6mmØ | 7.3mmØ | 7.3mmØ | 9mmØ | 9mmØ |
| Length | 1.0m | 1.5m | 3.0m | 5.0m | 10.0m | 15.0m | 20.0m |
| Data transfer rate | 18Gbps | 18Gbps | 18Gbps | 18Gbps | 18Gbps | 18Gbps | 18Gbps |
| Weight | 100g | 125g | 250g | 400g | 800g | 1.4kg | 1.8kg |
Trade information
| 112.136UK | 112.138UK | 112.140UK | 112.142UK | 112.144UK | 112.147UK | 112.149UK | |
|---|---|---|---|---|---|---|---|
| Barcode / EAN | 5015972168868 | 5015972168899 | 5015972168929 | 5015972168950 | 5015972169018 | 5015972186534 | 5015972186558 |
| Package type | Bag Sealed | Bag Sealed | Bag Sealed | Bag Sealed | Bag | Bag | Bag |
| Package dimensions | 120 x 225 x 18mm | 120 x 225 x 20mm | 160 x 225 x 30mm | 185 x 280 x 40mm | 175 x 175 x 50mm | 175 x 175 x 50mm | 175 x 175 x 50mm |
| Package weight | 0.10kg | 0.13kg | 0.25kg | 0.41kg | 0.80kg | 1.40kg | 1.80kg |
