Description

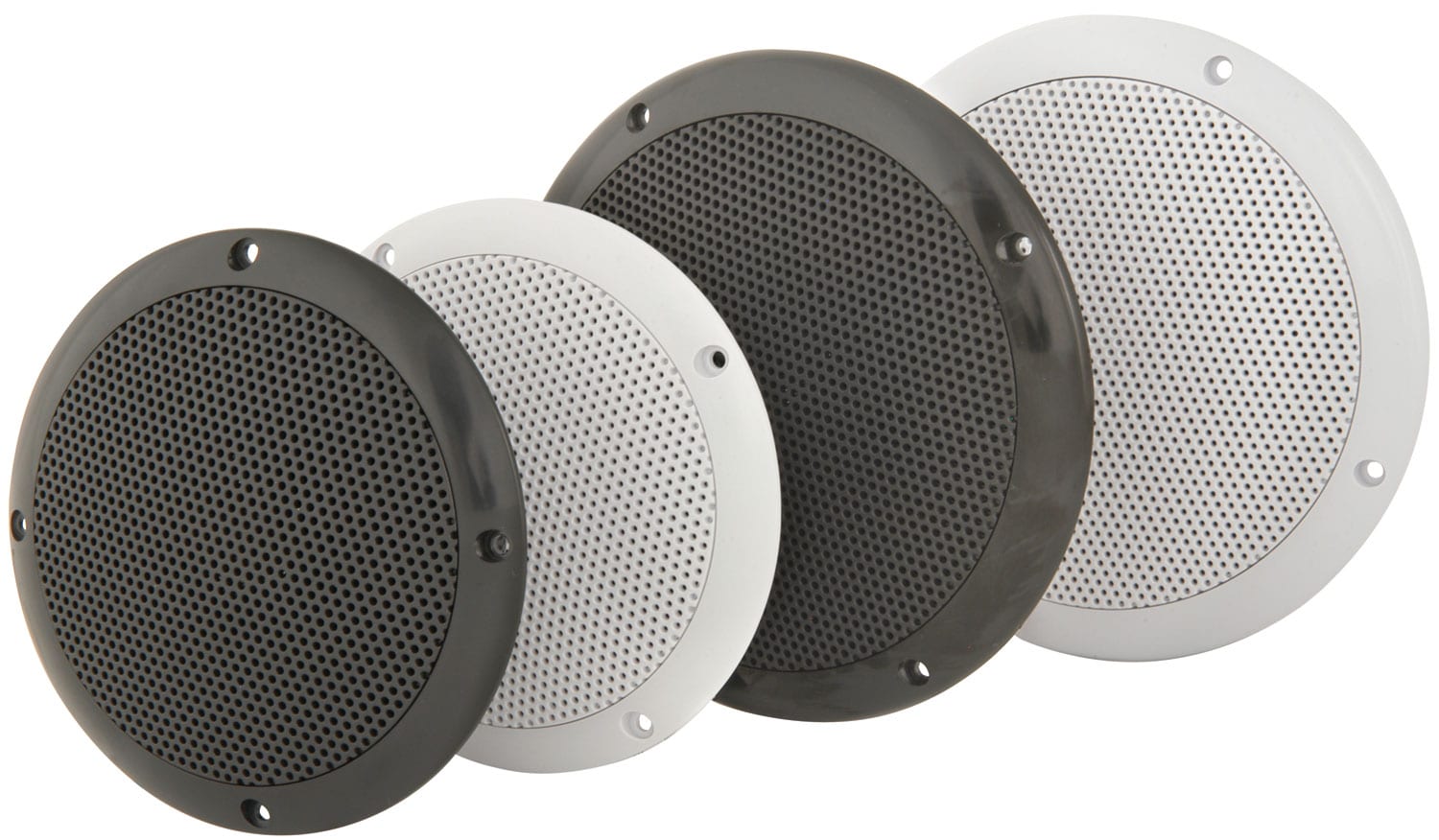

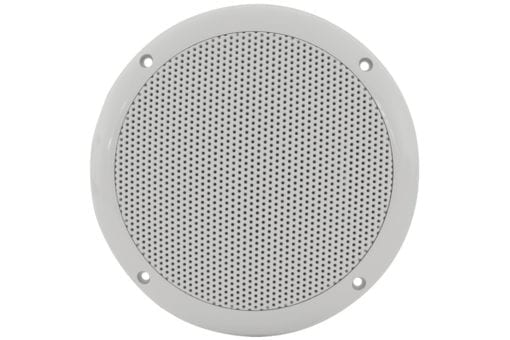

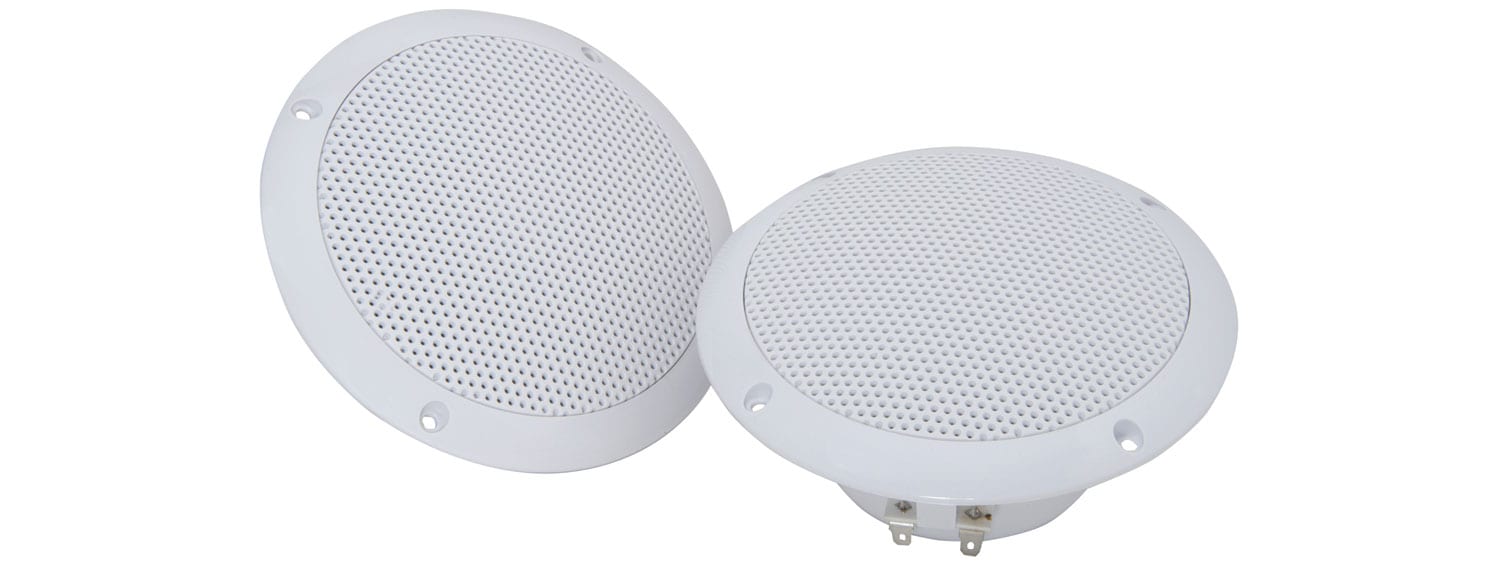

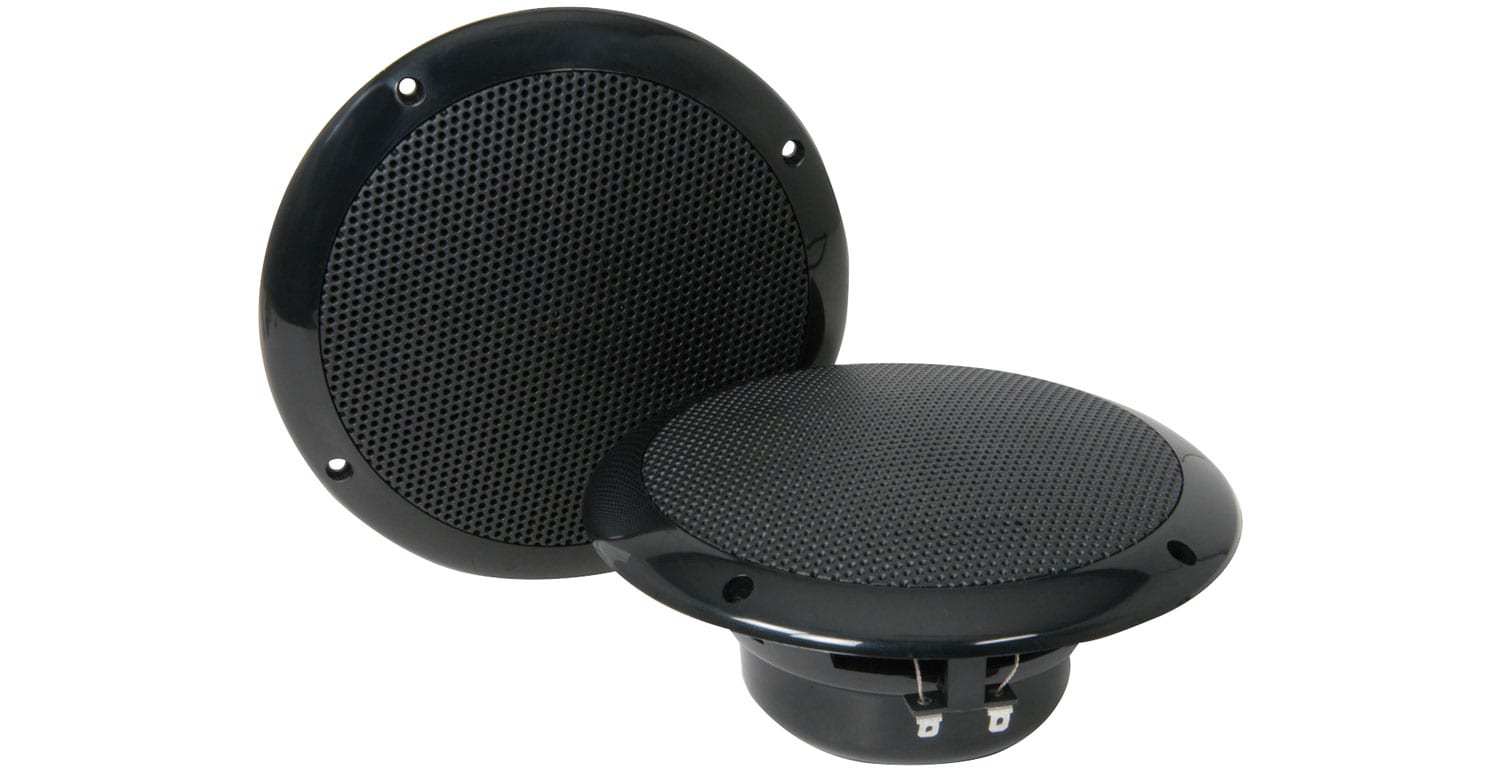

OD Series Water Resistant Speakers
A range of water resistant speakers for panel mounting, suitable for PA installations in swimming pools, bathrooms etc.
- 2-way speakers
- 5cm (2″) tweeter with mylar cone
- IP35 rated
- Plastic enclosure

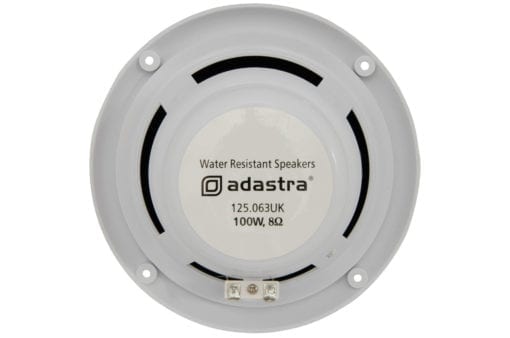

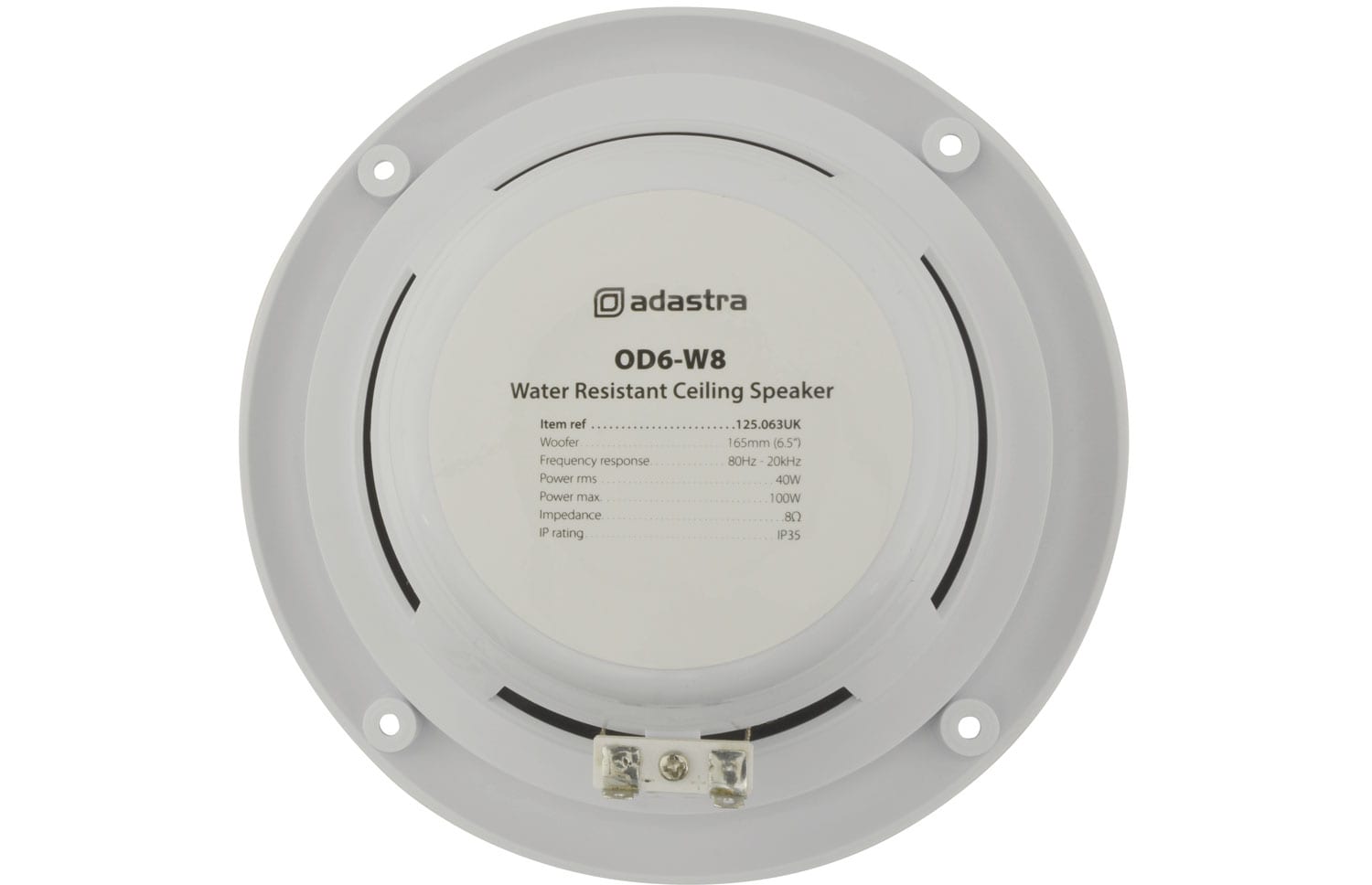

- Spade terminal connections (6mm)
- Woofer with polypropylene cone
- Built-in crossover
- Includes fixing kit
- Gasket included
- Supplied in pairs
Specification :Â Common
- Tweeter: 50mm (2″)
- Humidity max: 95%
- IP rating: IP35
- Dispersion angle: 140°
- Temperature range: -20 – 85°C
Specification :Â Versions
| 125.030UK | 125.032UK | 125.061UK | 125.063UK | 125.050UK | |
|---|---|---|---|---|---|
| Colour | White | White | White | White | Black |
| Impedance | 4 ohms | 8 ohms | 4 ohms | 8 ohms | 8 ohms |
| Speaker size | 130mm (5″) | 130mm (5″) | 165mm (6.5″) | 165mm (6.5″) | 165mm (6.5″) |
| Frequency response | 100Hz – 20kHz | 100Hz – 20kHz | 80Hz – 20kHz | 80Hz – 20kHz | 80Hz – 20kHz |
| Power max. | 80W | 80W | 100W | 100W | 100W |
| Power rms | 35W | 35W | 40W | 40W | 40W |
| Magnet weight | 184g (6.5 oz) | 184g (6.5 oz) | 221g (7.8 oz) | 221g (7.8 oz) | 221g (7.8 oz) |
| Cutout | 112mmØ | 112mmØ | 132mmØ | 132mmØ | 132mmØ |
| Mounting depth | 56mm | 56mm | 65mm | 65mm | 65mm |
| SPL @ 1W/1m | 86dB | 86dB | 87dB | 87dB | 87dB |
| Dimensions | 72.5 x 148mmØ | 72.5 x 148mmØ | 84.5 x 180mmØ | 84.5 x 180mmØ | 84.5 x 180mmØ |
| Weight | 565g | 565g | 745g | 745g | 745g |
Trade information
| 125.030UK | 125.032UK | 125.061UK | 125.063UK | 125.050UK | |
|---|---|---|---|---|---|
| Barcode / EAN | 5015972022948 | 5015972022955 | 5015972023006 | 5015972023013 | 5015972022993 |
| Tariff code | 8518210000 | 8518210000 | 8518210000 | 8518210000 | 8518210000 |
| Country of Origin | CN | CN | CN | CN | CN |

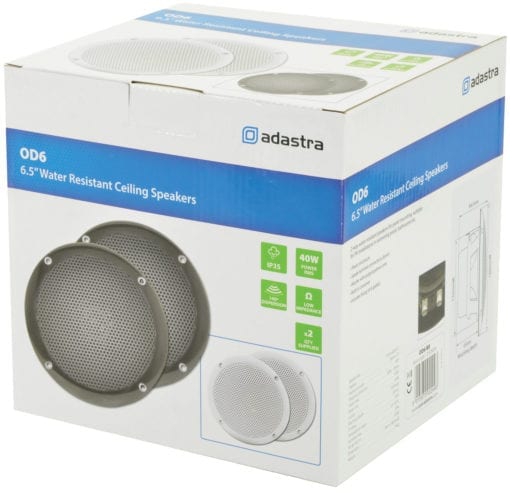

| Package type | Gift Box | Gift Box | Gift Box | Gift Box | Gift Box |
| Package dimensions | 160 x 163 x 150mm | 160 x 163 x 150mm | 195 x 189 x 184mm | 195 x 189 x 184mm | 195 x 189 x 184mm |
| Package weight | 1.47kg | 0.63kg | 2.01kg | 2.01kg | 2.01kg |
