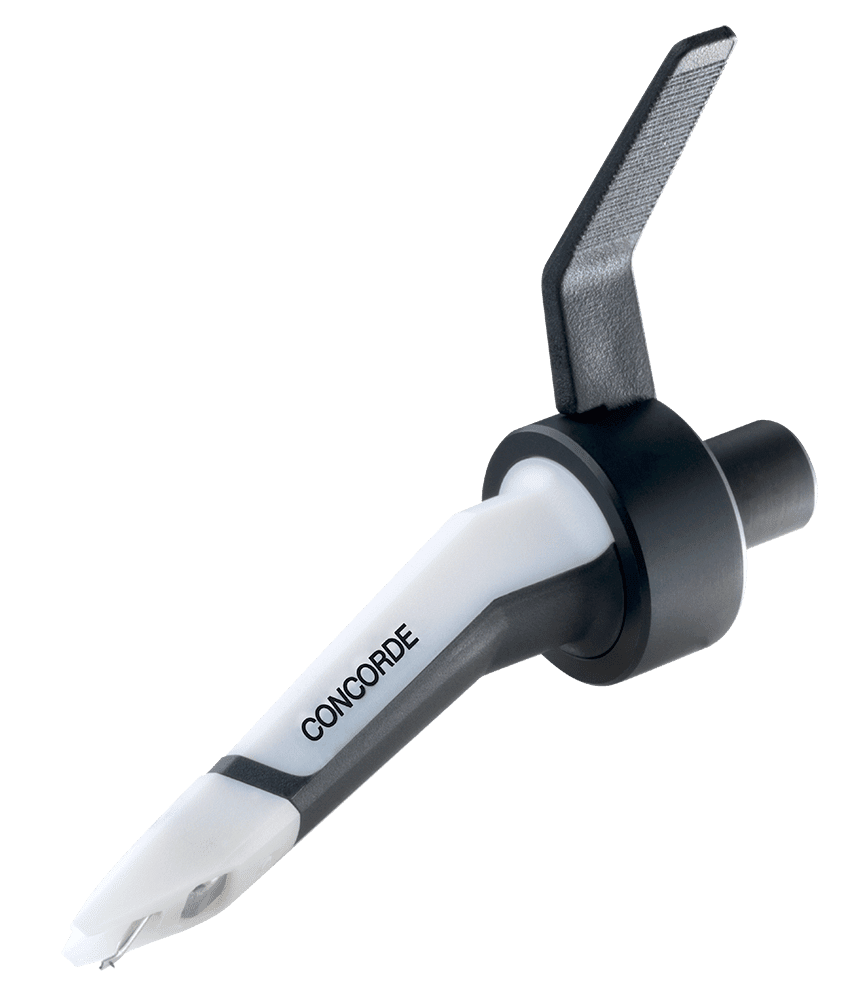

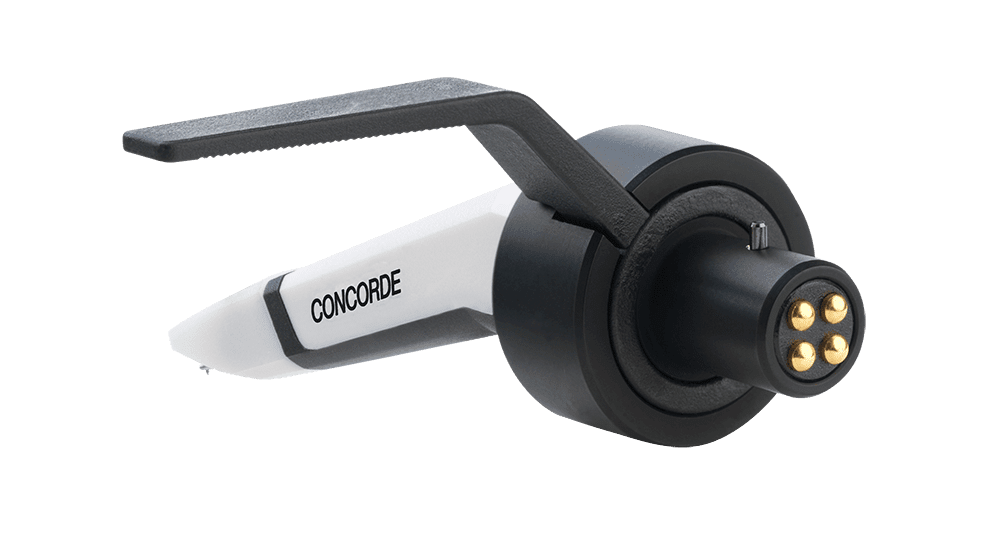

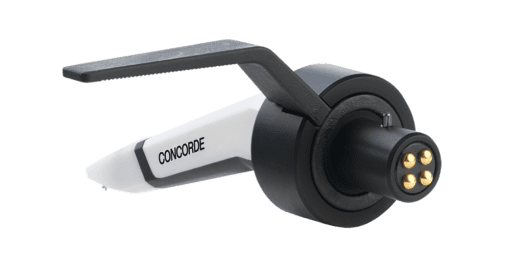

Ortofon CONCORDE MKII SCRATCH Professional DJ Cartridge

£55.00£245.00

The new Concorde MKII Scratch allows turntablist and scratching DJs to achieve new levels of performance with an unprecedented tracking ability and extra high output.

Description

New levels of performance

The Concorde MKII Scratch allows turntablist and scratching DJs to achieve new levels of performance with an unprecedented tracking ability and extra high output.
• The Concorde MKII SCRATCH is intended especially for scratching and back-cueing. The Concorde MKII SCRATCH uses spherical styli, as they preserve more of the groove over backcueing and scratching.
• For DJs that require increased tracking ability, the Concorde MKII SCRATCH is up to the task. The Scratch has a supreme ability to trace the grooves of the records and it is tailored specifically for scratch.
• Due to its very high output 10 mV, it is perfect for scratch of all music with deep bass frequences. With solid bass reproduction and extended highs, the Concorde MKII SCRATCH is great for any style, providing energetic sound. Maximum scratch performance guaranteed!

Concorde MKII SCRATCH technical data

  • Stylus Type: Spherical
  • Tracking Force: 4.0 g
  • Output Voltage: 10 mV
  • Frequency Range: 20-18.000 Hz

Output voltage at 1000Hz, 5cm/sec. – 10 mV
Channel balance at 1kHz – 1 dB
Channel separation at 1kHz – 22 dB
Channel separation at 15 kHz – 15 dB
Frequency range at -3dB – 20-18.000 Hz
Tracking ability at 315 Hz at recommmended tracking force – 120 μm
Compliance, dynamic lateral – 14 μm/m N
Stylus type – Spherical R 18 μm
Tracking force range – 3 – 5 g
Tracking force recommended – 4 g

Cartridge weight – 18,5 g

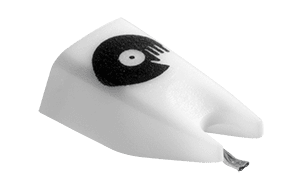

Replacement stylus unit – MKII SCRATCH

Additional information

Version

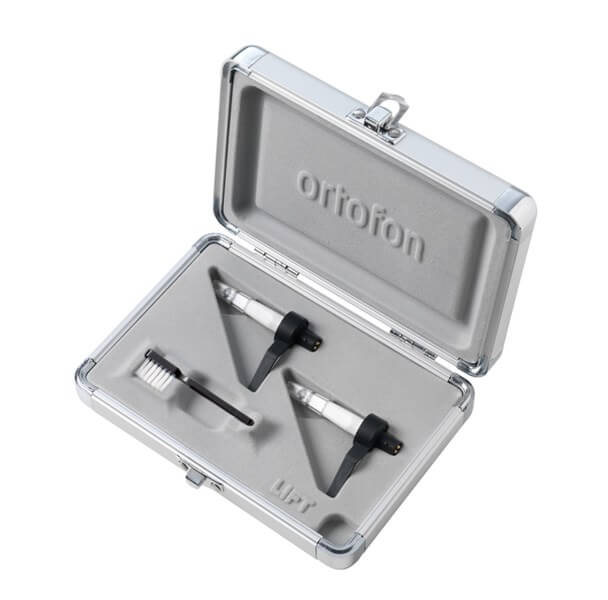

Single, Twin, Stylus
