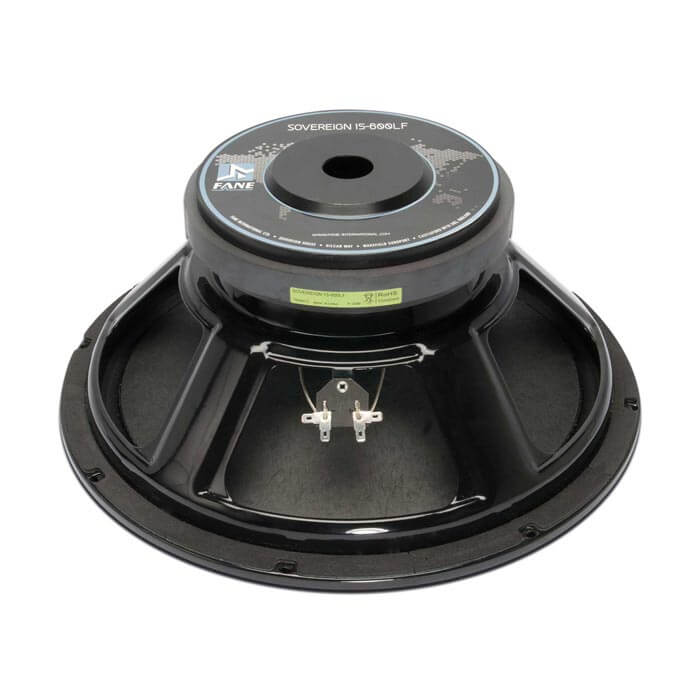

Description
- 1200 W Program Power.
- 98.5 dB Sensitivity (1W/1m).
- For use in pro-sound applications.
- Outstanding 98.5dB SPL output.
- Ideally suited for medium to large vented enclosures.
- Great for ported bass enclosure designs.
- Optimised cone pulp offering increased strength, durability and performance.
- 3-inch Copper voice coil.
Electro Acoustic Specifications Nominal Chassis Diameter 15″ / 381 mm Impedance 4 /8 /16 Ω Power Handling 600 W (A.E.S.) Peak Power (6dB Crest Factor) 2400 W (A.E.S.) Usable Frequency Range (-6dB) 38 Hz – 3.5 kHz Sensitivity (1W – 1m) 98.5 dB Moving Mass (inc. Air Load) 82.39 grams Minimum Impedance (Zmin) 7 Ω Effective Piston Diameter 15.03″ / 381.76 mm Magnet Weight 95 oz Magnetic Gap Depth 0.39″ / 10 mm Flux Density 0.97 Tesla Coil Winding Height 0.74″ / 19 mm Voice Coil Diameter 3.0″ / 76.2 mm Speaker Type Bass Driver Thiele Small Parameters (TSPs) FS 37 Hz Re 5.4 Ω QMS 6.28 QES 0.414 QTS 0.389 Vas 236 Litres Vd 0.556 Litres CMS 0.228 mm/N BL 15.9 T/m MMS 81 grams Xmax 6.5 mm Sd 855 cm2 Efficiency 2.83% Le 1.52 mH EBP 89.37 Hz Materials of Construction Coil Former Material Glass Fibre Voice Coil Material Copper Magnet Material Ferrite Chassis Material Pressed Steel Cone Material Curvilinear Paper Surround / Edge Termination Polyvinyl Damped Dbl. Half Roll Poly Cotton Dust Dome Material Paper Connectors Solder Tag Polarity Positive voltage at red terminal causes forward motion of cone Mounting / Shipping Information Overall Diameter 15″ / 381 mm Width Across Flats N/A Flange Height 0.35″ / 8.89 mm Baffle Hole Diameter F/M 13.85″ / 351.79 mm Baffle Hole Diameter R/M 13.85″ / 351.79 mm Gasket Supplied Front & Rear Outer Fixing Holes 8x ø 6.35 mm on 14.56″ / 369.2 mm PCD Inner Fixing Holes Not Applicable Depth 6.65″ / 168.91 mm Weight 17.96 lb / 8.15 Kg Recommended Enclosure Volume 1.76 – 4.41 cu ft / 50 – 125 Litres Shipping Weight 20.17 lb / 9.4 Kg Packing Carton Dimensions (W) 410 (D) 410 (H) 210 mm
