Description
Dual 15-band Graphic EQ

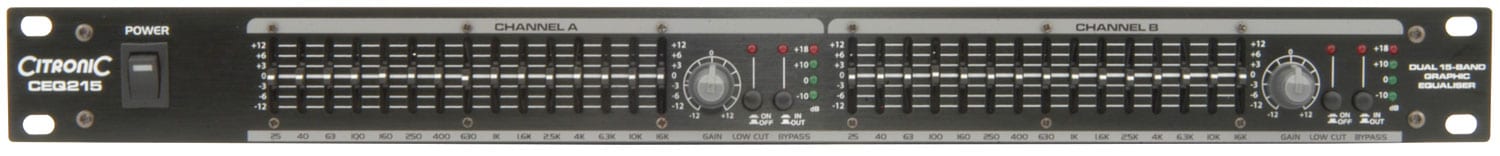

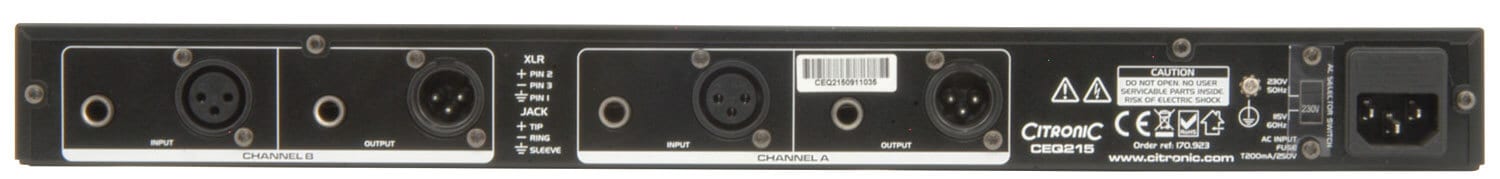

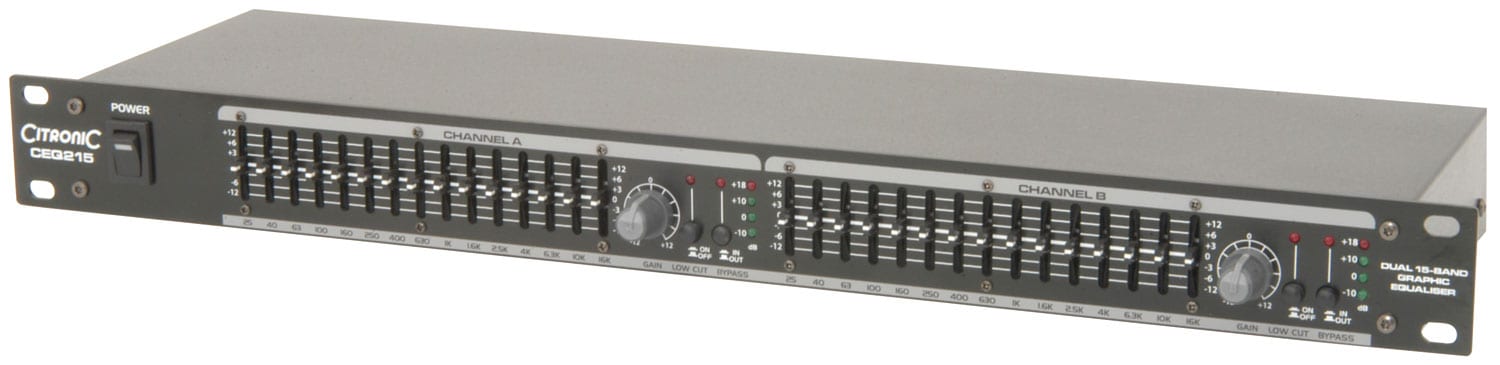

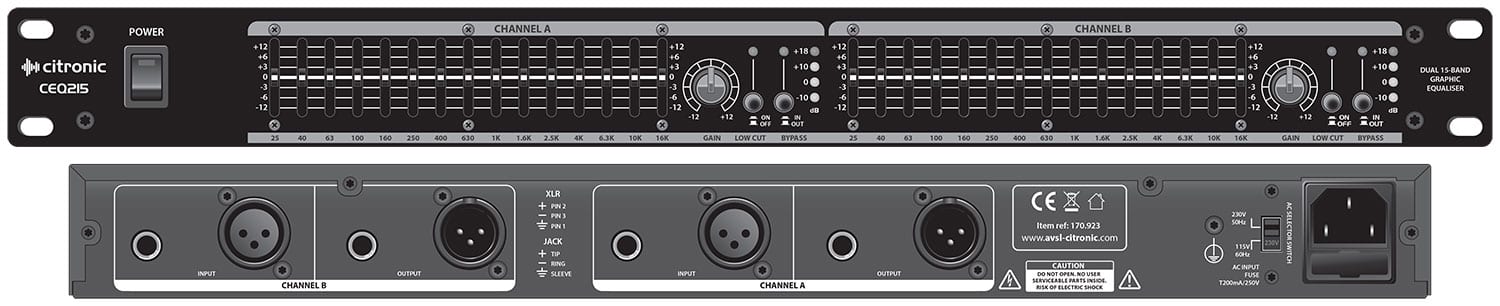

The CEQ215 is a 19″ rack mounted dual 15-band graphic equaliser, which allows the adjustment of labelled frequencies via the individual cut/boost faders. Up to 12dB of cut or boost for frequencies ranging from 25Hz to 16kHz for accurate audio spectrum control.
- 2 x 15-band 2/3 octave ISO spacing
- RF filtered servo-balanced inputs
- Constant Q each band
- Bypass switch for EQ comparison
- Low-cut switch each channel
- Gain control each channel
- LED VU meters
- 19″ rackmount 1U
Specification
- Power supply: 115/230Vac, 50/60Hz (IEC)
- Frequency response: 20Hz-20kHz
- Input impedance : balanced: 40k Ohms
- Input impedance : unbalanced: 20k Ohms
- Output impedance : bal/unbal: 330 Ohms
- Channel separation: >50dB
- Signal to noise ratio: >102dB
- THD: 0.005%
- Dimensions: 482 x 44 x 138mm
- Weight: 2.0kg
